SERP / Product Page Event API

First you have to inject our integration script into your website.

The script is the following:

<!-- Prefixbox Integration -->
<script> window.prefixboxAnalytics=window.prefixboxAnalytics||function(t,s,p){(window.pfbxQueue=window.pfbxQueue||[]).push({type:t,source:s,params:p});}; </script>
<script async id="prefixbox-integration" website="websiteTracker" src="https://cdn.prefixbox.com/plugin/integration.js"></script>
<!-- End Prefixbox Integration -->

or alternatively:

<!-- Prefixbox Integration -->
<script> window.prefixboxAnalytics=window.prefixboxAnalytics||function(t,s,p){(window.pfbxQueue=window.pfbxQueue||[]).push({type:t,source:s,params:p});};
var ps=document.createElement("script");
ps.type="text/javascript";
ps.id="prefixbox-integration";
ps.setAttribute("website", "websiteTracker");
ps.async=1;
ps.src="https://cdn.prefixbox.com/plugin/integration.js";
document.getElementsByTagName("head")[0].appendChild(ps);
</script>
<!-- End Prefixbox Integration -->

Parameters:

• websiteTracker – This unique attribute is mandatory and has to be copied from the Prefixbox Portal after registration. The tracker code can be accessed from Settings > Websites.

SERP / Product Page Event API

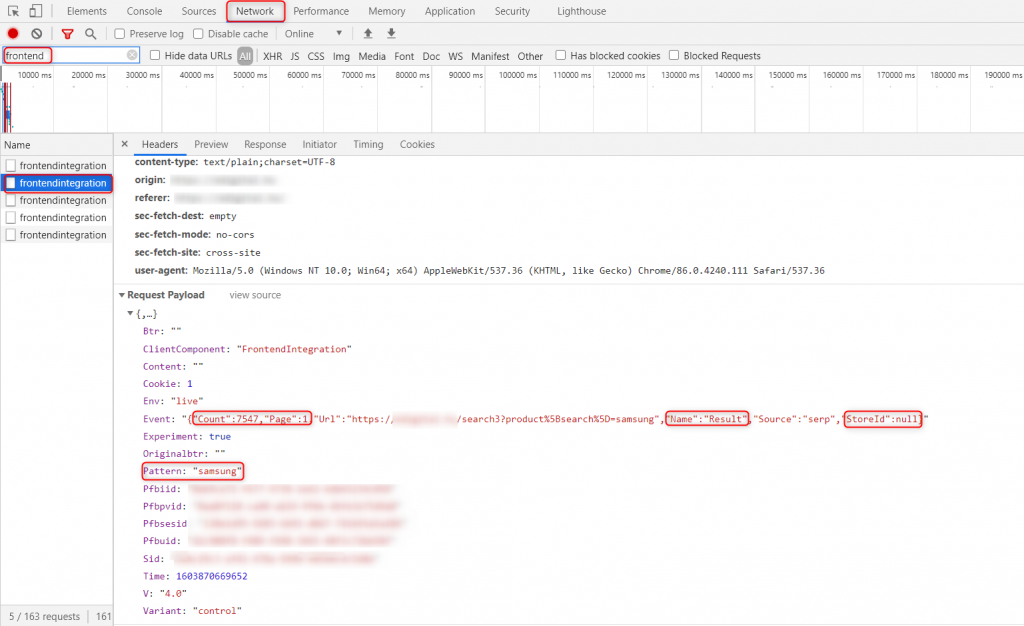

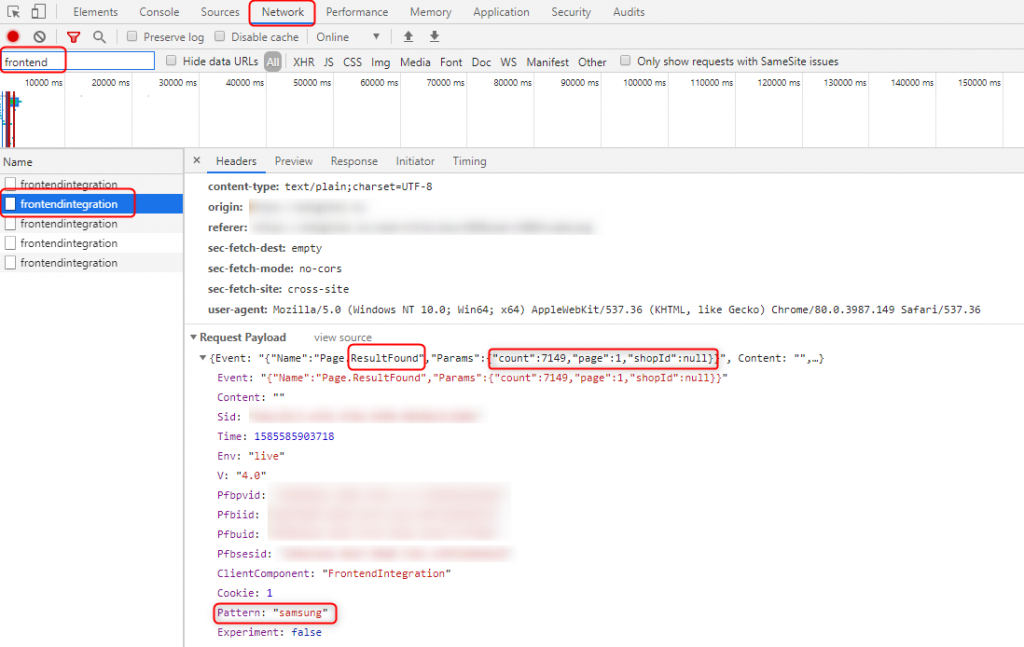

Result Found

This event must be raised when the Search Engine results are returned. Everything you see in the highlighted area (1.) is a search engine result.

Syntax:

prefixboxAnalytics(‘result’, ‘serp’, inputParams)

Required parameters of the inputParams object:

• Pattern – the search keyword executed by the user.
• Count – the number of results that the search found – zero if no results were found.
• Page – the current search result page number being visited (optional). E.g.: if there are 3 pages of search results and the user is on the 1st page, the value of this parameter should be 1.
  In our highlighted example below (2.) there are at least 5 pages and the user is on the 2nd one.

Example:

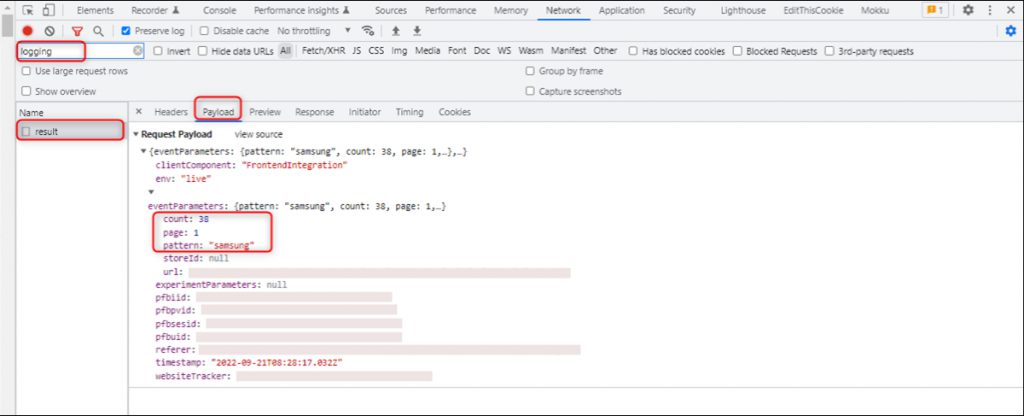

window.prefixboxAnalytics('result', 'serp', { pattern: 'samsung', count: 38, page: 1 });

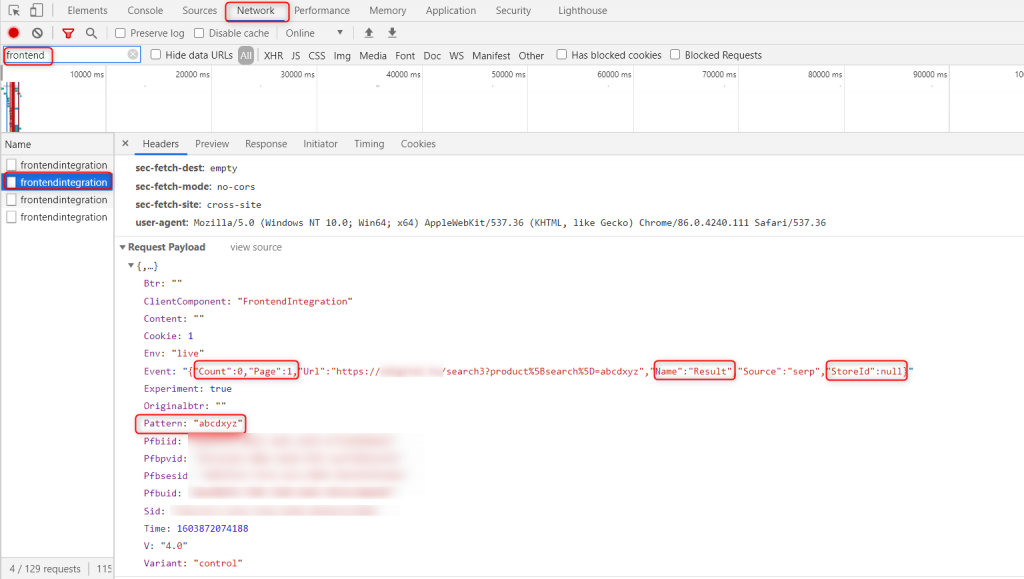

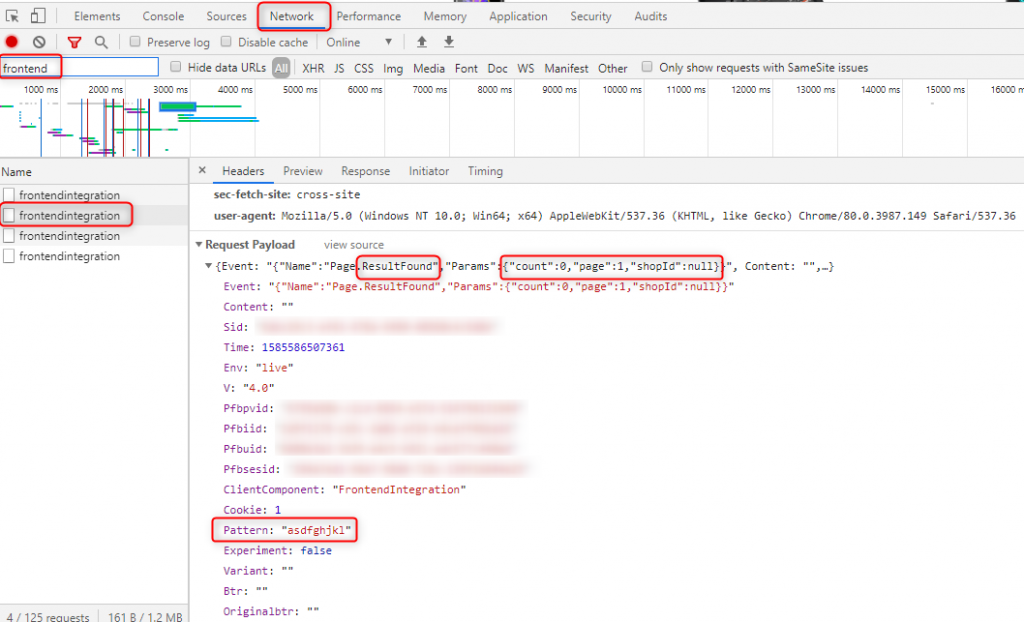

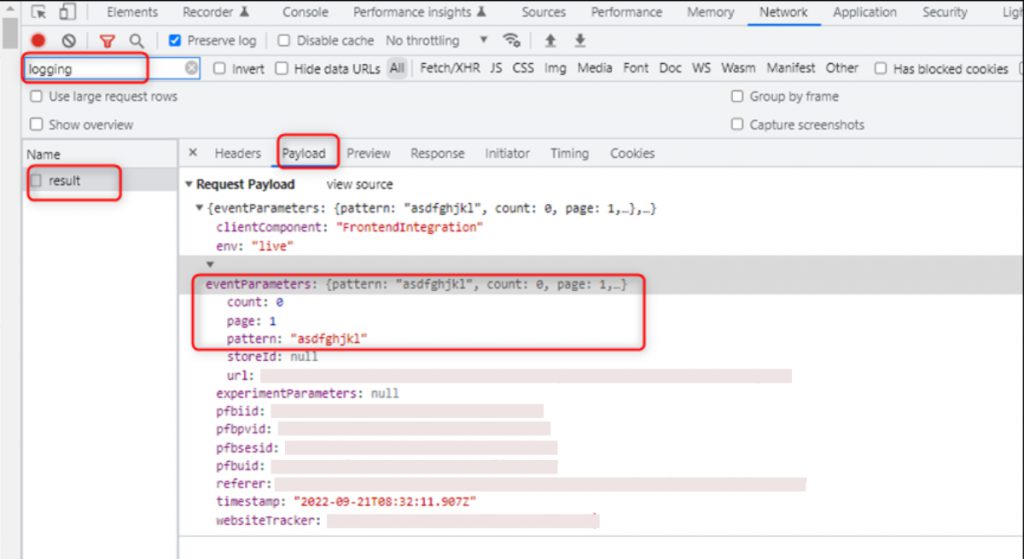

No Result

This event must be raised when the Search Engine result is empty – like on the highlighted example (3.) below.

Syntax:

prefixboxAnalytics(‘result’, ‘serp’, inputParams)

Required parameters of the inputParams object:

• Pattern – the search keyword executed by the user.
• Count – zero (0).
• Page – optional value. E.g.: 1.

Example:

window.prefixboxAnalytics('result', 'serp', { pattern: 'asdfghjkl', count: 0, page: 1 });

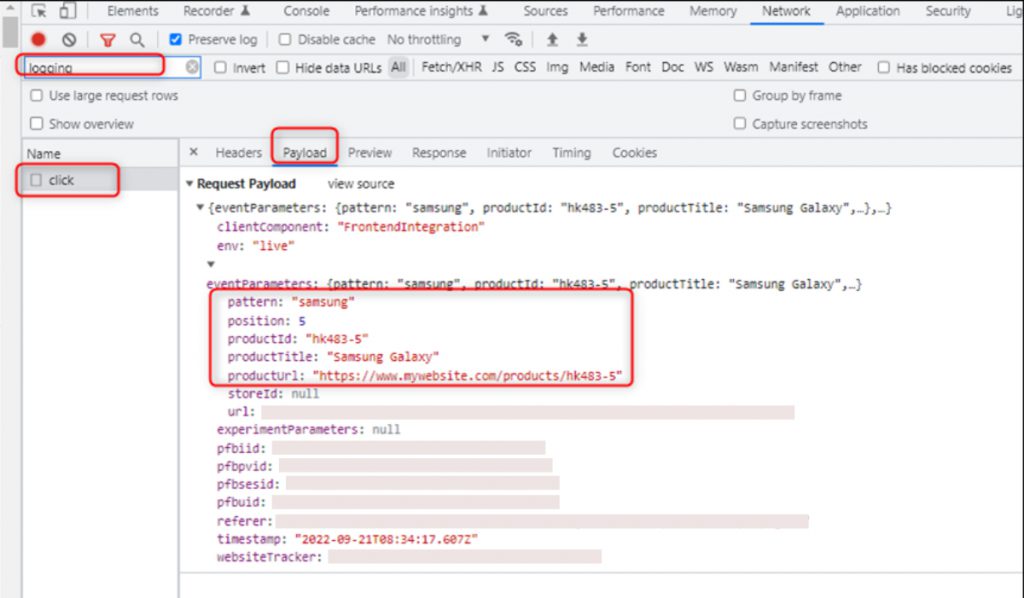

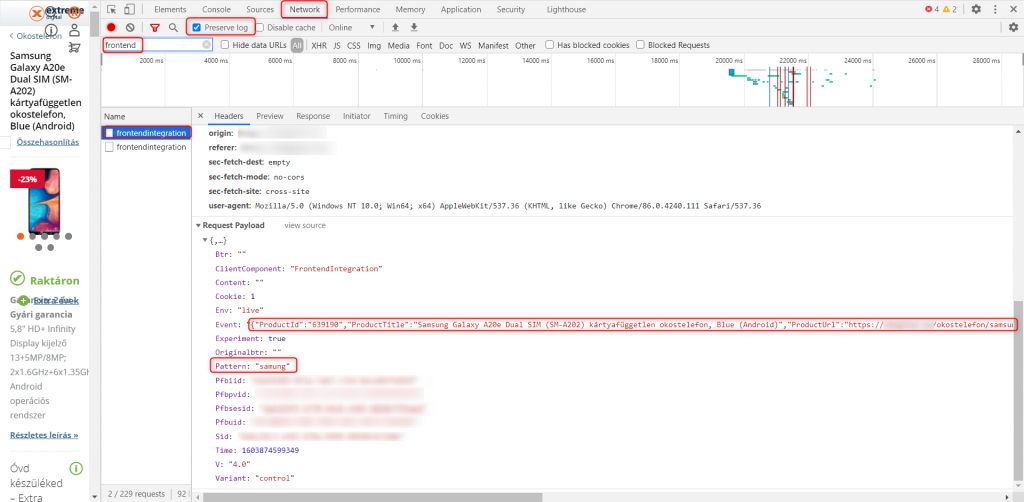

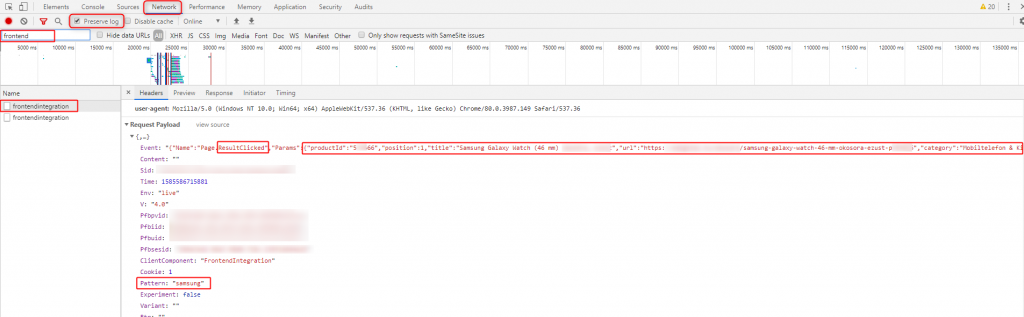

Result Click

This event must be raised when the user clicks on any of the Search Engine results. Normally the users can click on a product picture (4.), or on the product’s name (5.) as well, but everything that opens a product page from the SERP can count as a “Result Click” event.

Syntax:

prefixboxAnalytics(‘click’, ‘serp’, inputParams)

Required parameters of the inputParams object:

• Pattern – the search keyword executed by the user.
• Position – the index of the search result the user clicked on (starting from 1). The product position is based on the product order – so in our case, the first product is an apple, the second one is an apricot, and the fifth one is a lemon.
• Product ID – the unique identifier of the product.
• Title – the title of the result the user clicked on.
• URL – the URL of the result page where the user is redirected after clicking on the result.
  An example product URL: https://www.mywebsite.com/products/hk483-5

Optional fields of the inputParams object:

• Category – the category of the product, delimited by ‘/’ characters. E.g.: books/fantasy.

Example:

window.prefixboxAnalytics('click', 'serp', { pattern: 'samsung', position: 5, productId: 'hk483-5', title: 'Samsung Galaxy', url: 'https://www.mywebsite.com/products/hk483-5', category: 'Mobile phones' });

Add to cart

This event must be raised when the user adds a product to the shopping cart.

Products can be added to the cart from the SERP (6.):

Or from the product page (7.):

When adding a product to the cart, it’s also possible to set the quantity (8.) as an “Item Count”.

Syntax:

prefixboxAnalytics(‘cart’, ‘serp’, inputParams)

Required parameters of the inputParams object:

• Product ID – the unique identifier of the product.
• Title – the name of the product.
• URL – the unique URL of the product (product details page URL).
• Price – the price of the product. A decimal point can be used as a delimiter between the whole and fractional portion of the currency. The precision is up to 4 decimal places.
• Currency – the currency of the price of the product, service, software, etc. in the ISO 4217 3 letter format.
• Item Count – the number of products being added to the cart.

Optional fields of the inputParams object:

• Position – if the event happened on the Search Result Page, populate this parameter with the index of the search result.
• Pattern – if the event happened on the Search Result Page, populate this parameter with the search keyword.
• Category – the category of the product, delimited by ‘/’ characters. E.g.: books/fantasy

Example:

window.prefixboxAnalytics('cart', 'serp', { pattern: 'samsung', position: 5, productId: 'hk483-5', title: 'Samsung Galaxy', url: 'https://www.mywebsite.com/products/hk483-5', category: 'Mobile phones', price: 83000, currency: 'HUF', itemCount: 1 });

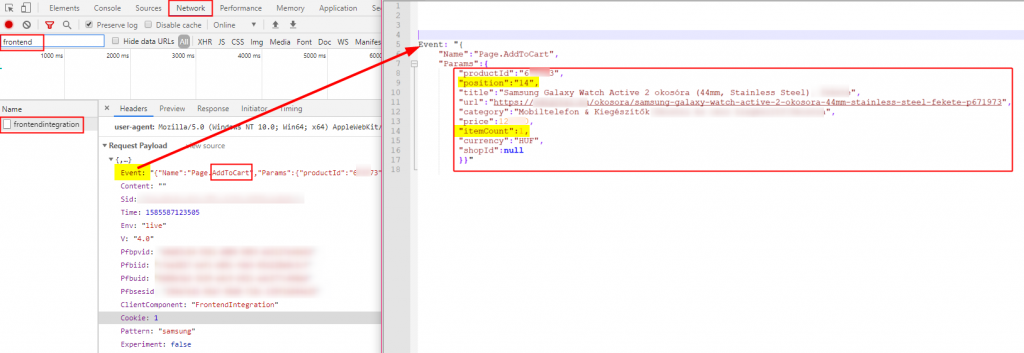

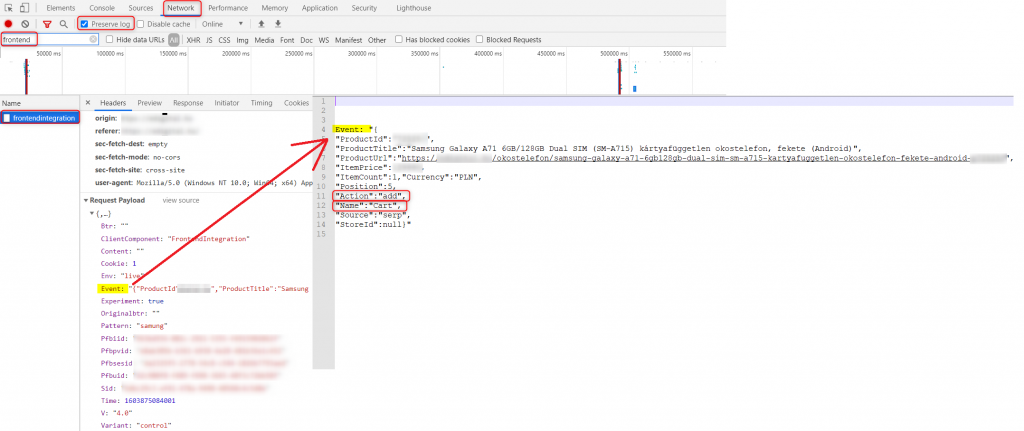

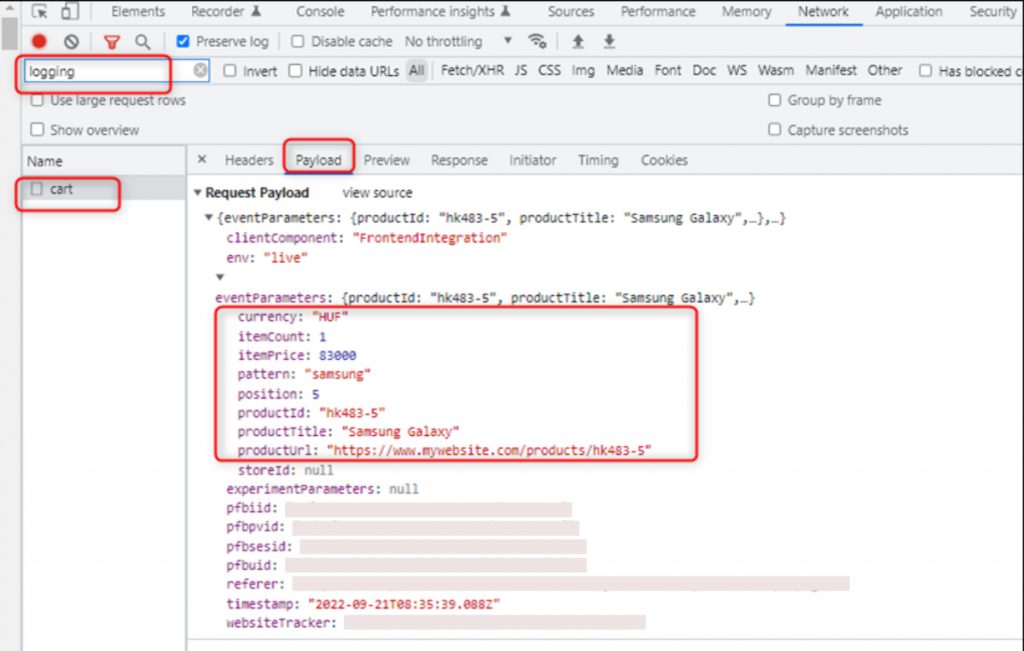

Add to cart (SERP)

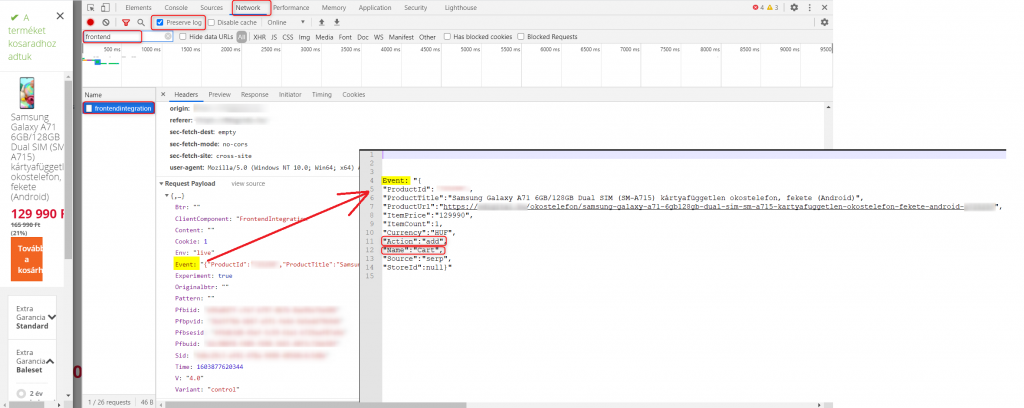

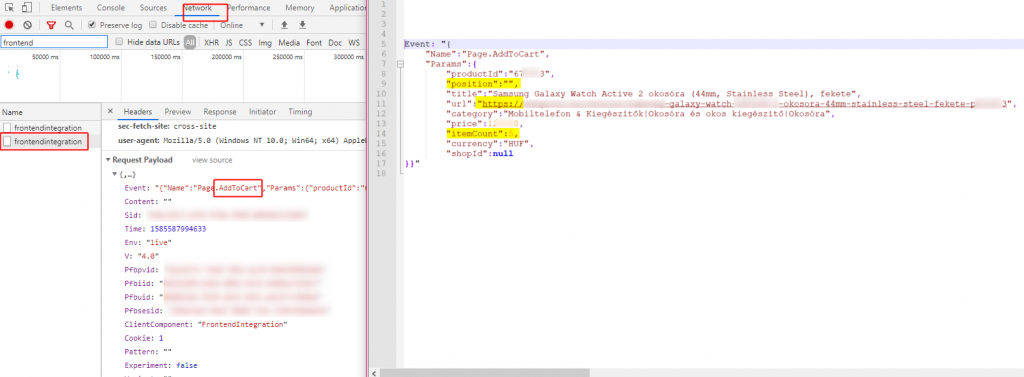

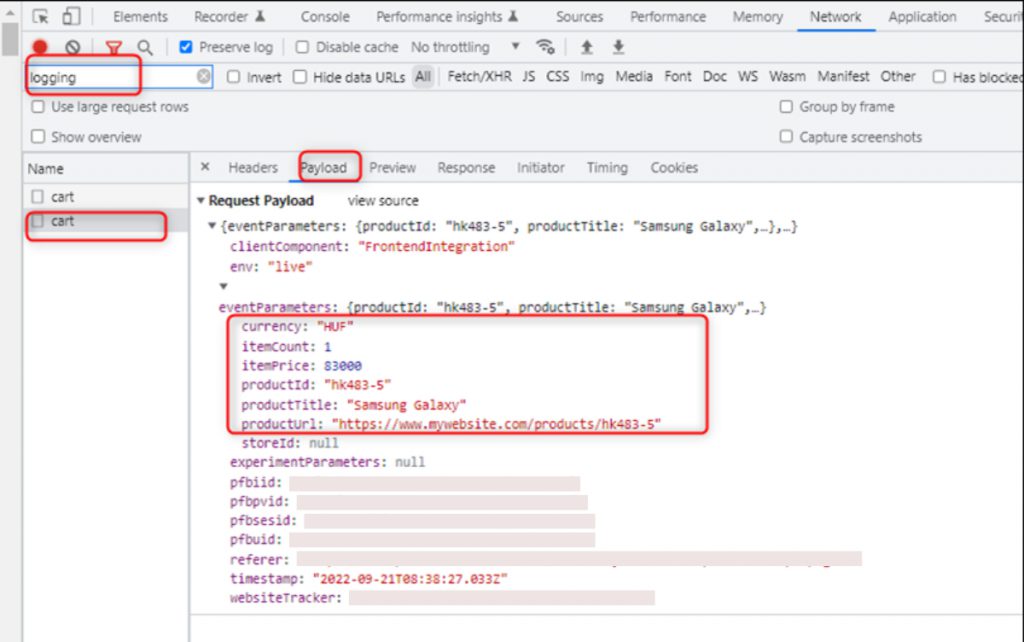

Add to cart (product page)

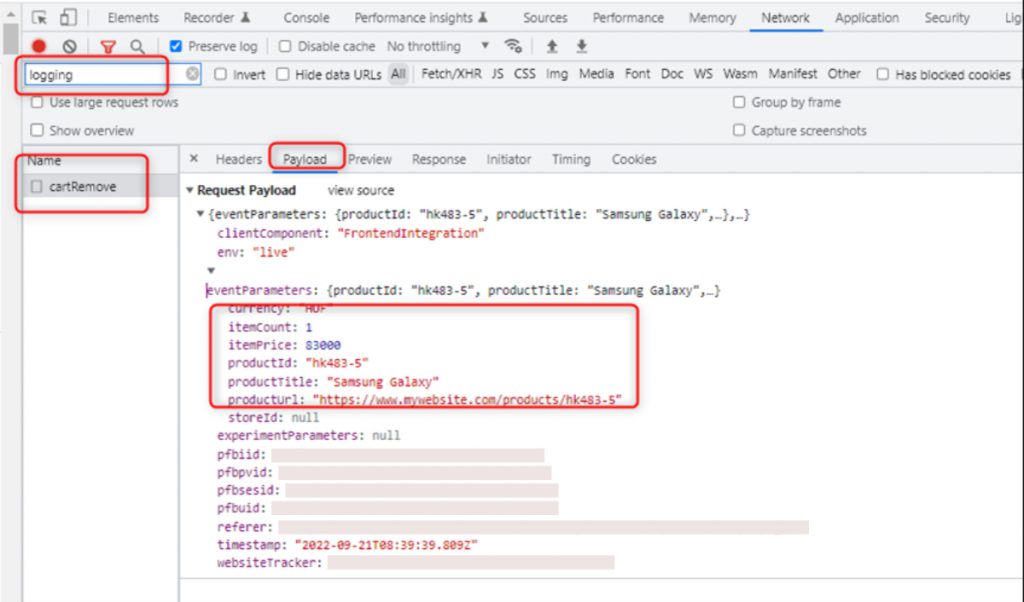

Remove from cart

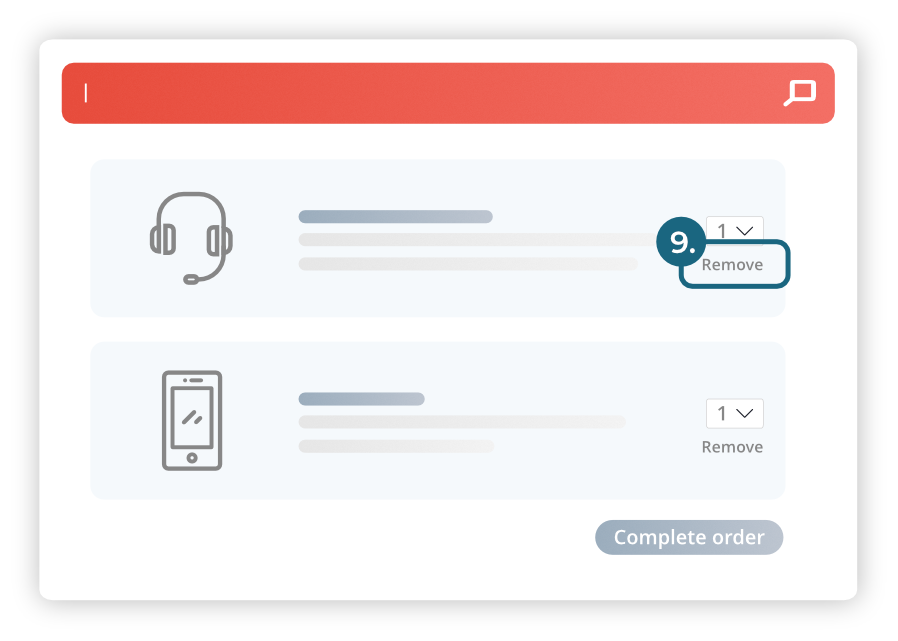

This event must be raised when the user removes a product (9.) from the shopping cart on the website.

Syntax:

prefixboxAnalytics(‘cartremove’, ‘serp’, inputParams)

Required parameters of the inputParams object:

• Product ID – the unique identifier of the product.
• Title – the name of the product.
• URL – the unique URL of the product (product details page URL).
• Price – the price of the product. A decimal point can be used as a delimiter between the whole and fractional portion of the currency. The precision is up to 4 decimal places.
• Currency – the currency of the price of the product, service, software, etc. in the ISO 4217 3 letter format.
• Item count – the number of products being added to the cart.

Optional fields of the inputParams object:

• Category – the category of the product, delimited by ‘/’ characters. E.g.: books/fantasy

Example:

window.prefixboxAnalytics('cartremove', 'serp', { productId: 'hk483-5', title: 'Samsung Galaxy', url: 'https://www.mywebsite.com/products/hk483-5', category: 'Mobile phones', price: 83000, currency: 'HUF', itemCount: 1 });

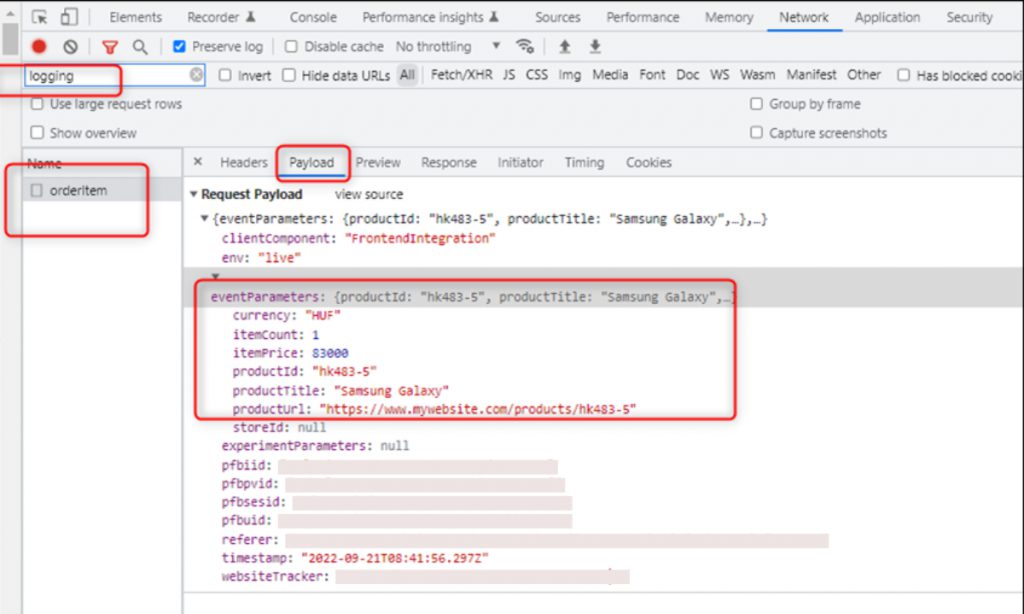

Item in order

This event must be raised when the user when a user finishes their order. The function should be called for each item in the order.

Syntax:

prefixboxAnalytics(‘orderitem’, ‘serp’, inputParams)

Required parameters of the inputParams object:

• Product ID – the unique identifier of the product.
• Title – the name of the product.
• URL – the unique URL of the product (product details page URL).
• Item price – the price of the product. A decimal point can be used as a delimiter between the whole and fractional portion of the currency. The precision is up to 4 decimal places.
• Currency – the currency of the price of the product, service, software, etc. in the ISO 4217 3 letter format.
• Item Count – the number of products being added to the cart.

Optional fields of the inputParams object:

• Category – the category of the product, delimited by ‘/’ characters. E.g.: books/fantasy

Example:

window.prefixboxAnalytics('orderitem', 'serp', { productId: 'hk483-5', title: 'Samsung Galaxy', url: 'https://www.mywebsite.com/products/hk483-5', category: 'Mobile phones', itemPrice: 83000, currency: 'HUF', itemCount: 1 });

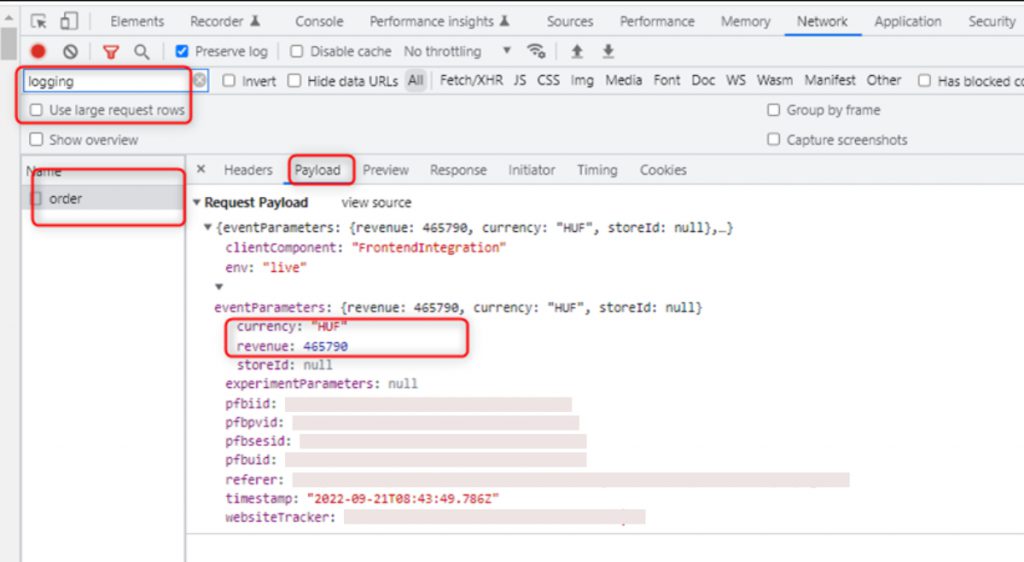

Order complete

This event must be raised when the user when a user finishes their order.

Syntax:

prefixboxAnalytics(‘order’, ‘serp’, inputParams)

Required parameters of the inputParams object:

• Revenue – the total revenue of the order (the sum of all the prices of the items in the order). A decimal point can be used as a delimiter between the whole and fractional portion of the currency. The precision is up to 4 decimal places.
• Currency – the currency of the price of the product, service, software, etc. in the ISO 4217 3 letter format.

Example:

window.prefixboxAnalytics('order', 'serp', { revenue: 465790, currency: 'HUF' });
